Bearing swapped. Drone's still there.

NVH diagnostics locates the actual source of noise and vibration — so you fix the right part, first time.

Sound familiar?

Every workshop has been here. The customer complaint is real, the diagnosis seems right, the part gets swapped — and the noise is still there.

Wheel bearing swapped. Drone hasn't changed.

Misdiagnosed bearing side is one of the most common NVH errors. The drone continues at speed because the vibration source was never on the side you replaced.

Mounts replaced. Vibration's still there.

Engine and gearbox mount replacements for vibration are a common speculative fix. When the vibration persists, there's no obvious next step — just cost already sunk.

Charged for the last fix. Rattle's still there.

The customer has paid and now expects a free redo. Rattles are the most common vague NVH complaint, and the hardest to pin down without measurement.

Ran every diagnostic. No fault codes. Still runs rough.

Scan tools find electrical faults. They can't find mechanical ones. When the tool gives you nothing, NVH diagnostics picks up where electronics leave off.

From guesswork to measurement

Every vibration has a frequency. That frequency tells you the source. The software does the matching — you get a straight answer.

1. Measure

Accelerometers and microphones capture vibration and sound data during a road test or static run-up.

2. Identify

The software matches frequencies to vehicle components — wheels, engine orders, propshaft, bearings — and tells you which one is responsible.

3. Confirm

Objective data replaces subjective opinion. Show the customer the measurement, compare against a known-good baseline, and proceed with confidence.

4. Verify

After the repair, re-test with the same setup. The data proves the fix worked — to you and to the customer.

Faster set-up. Fewer test cycles. Better results.

Every vibration has a frequency. That frequency tells you the source. The software does the matching — you get a straight answer.

Twelve axes: Four corners, one test

Each three-axis accelerometer captures fore-aft, lateral, and vertical vibration through a single PicoScope channel. Four accelerometers on a four-channel scope covers every corner of the vehicle in one road test. Previously, this required multiple passes with reconfiguration between each.

Simple connection: Easy setup

The PicoBNC NVH setup from Pico requires no additional leads or boxes. Simply plug the lead into one of the BNC ports of the PicoScope osilloscope and you're ready to test.

Zero config: Plug in, start testing

PicoBNC automatic probe recognition means the software identifies each probe on connection and applies correct settings. No manual entry of probe type or sensitivity values. One less step to get wrong, one fewer source of unreliable results.

No battery: Always ready

PicoBNC NVH probes are battery-free. No dead CR123 cells before a road test. No replacement stock to manage. No servicing downtime. The probe is ready when you are.

No registration: No activation codes
Use straight out of the box with any automotive PicoBNC PicoScope.

Propshaft balancing

When NVH diagnosis points to a propshaft vibration, rebalancing on the vehicle is faster and cheaper than replacement. The software guides you through every step.

Guided, on-vehicle balancing

The PicoDiagnostics balancing software, combined with the PQ316 optical sensor kit, measures shaft vibration and calculates exactly where to add weight and how much. No specialist equipment. No removal required.

✓ Pinion flange method — add weights to existing flange holes
✓ Hose clamp method — clamp weights to the shaft directly
✓ Step-by-step software wizard with graphical guidance
✓ Before-and-after measurement to confirm the fix

This capability was previously only available in manufacturer facilities or specialist workshops. The optical balancing kit makes it accessible to any independent workshop with an NVH kit.

Which kit do you need?

Choose your kit based on how many locations you need to cover at once. Each kit includes PicoBNC microphones, three-axis accelerometers, and extension leads.

NVH Starter kit

NVH Standard kit

NVH Advanced kit

Single-point diagnosis. Ideal for confirming a suspected vibration source at one location.

TA572 Microphone	1
TA573 3-Axis Accelerometer	1
TA574 Extension Lead	1
Carry Case	Optional
Test coverage	1 location / 3 axes

An image showing the contents of the PQ427 PicoBNC NVH Starter kit from Pico Technology

Everything you need to start diagnosing

Each component connects via PicoBNC for automatic recognition and zero-configuration set-up.

TA572

PicoBNC NVH Microphone

Captures airborne noise. Position near suspected sound sources for frequency identification.

Find out more

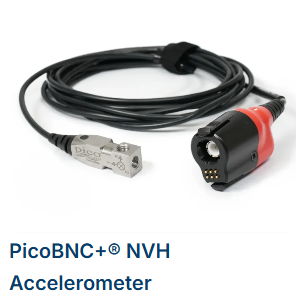

TA573

PicoBNC 3-Axis Accelerometer

Measures vibration in three axes through one channel. Magnetic mount for fast positioning.

Find out more

TA574

PicoBNC Extension Lead

Extends probe reach for larger vehicles, machinery, and hard-to-access measurement points.

Find out more

TA096

Secure fitting

Our magnetic mount ensures secure attachment to any ferrous surface, enabling quick repositioning between test points.

Find out more

Accessories for PicoBNC ® NVH Diagnostics

Compatible Accessories


Buy Your J2534 Mongoose Lead Here [TA512]:	Buy Your Optical Sensor Kit Here [PQ316]:	Buy Your NVH Microphone Here [TA572]:

Buy Your NVH Accelerometer Here [TA573]:	Buy Your BNC Extension Cable Here [TA574]:	Buy Your Magnetic Accel. Mount Here [TA096]:

PicoDiagnostics NVH BNC Specifications

Product	Attribute	Specification
TA572 PicoBNC NVH microphone	Frequency response:	20 to 20 kHz
	Maximum sound pressure level:	115 dB (SPL)
	Measurement accuracy:	±3 dB (SPL) at 1 kHz
	Directionality:	Omnidirectional
	Supply Voltage:	BNC Interface
	Dimensions:	12.7 mm diameter x 66 mm long
	Weight:	100 g (approx.)
	Cable length:	2.8 m
	Temperature range:	Operating: 0 to 40 °C Quoted accuracy: 23 ±2 °C Storage: -20 to 60 °C
	Humidity range:	Operating: 20 to 75 %RH non-condensing Quoted accuracy: 20 to 65 %RH Storage: 20 to 75 %RH non-condensing
	Altitude:	Up to 3000 m
	Safety approvals:	Designed to EN61010-1
	EMC approvals:	Tested to EN61326-1
	Environmental approvals:	RoHS, WEEE, & REACH compliance
TA573 PicoBNC Accelerometer	Acceleration range:	±5.0 g
	Vibration frequency range:	-3 dB bandwidth X, Y Axis: 0.35 - 1500 Hz Z Axis: 0.35 - 500 Hz
	Frequency error:	±250 ppm
	Accuracy:	±12.5 %
	Measuring units:	g or m/s² (software selectable)
	Supply Voltage:	BNC Interface
	Cable length:	2.8 m
	Thread mounting:	¼” x 28 UNF
	Temperature range:	Operating: 0 to 40 °C Quoted accuracy: 15 to 30 °C Storage: -20 to 60 °C
	Humidity range:	Operating: 5 to 80 %RH non-condensing Storage: 5 to 95 %RH non-condensing
	Altitude:	Up to 3000 m
	Shock survivability:	10 000 g (Sensor head only)
	Safety approvals:	Designed to EN61010-1
	EMC approvals:	Tested to EN61326-1
	Environmental approvals:	RoHS, WEEE, & REACH compliance
TA574 PicoBNC Extension lead	Total length:	3 m
	Weight:	260 g (approx.)
	Working voltage:	200 V DC AC peak
	Bandwidth:	>100 MHz
	Cable length:	2.8 m
	Temperature range:	Operating: 0 to 70 °C Storage: -20 to 70 °C
	Humidity range:	Operating: 5 to 80 %RH non-condensing Storage: 5 to 95 %RH non-condensing
	Altitude:	Up to 3000 m
	Safety approvals:	Designed to EN61010-1
	EMC approvals:	Tested to EN61326-1
	Environmental approvals:	RoHS, WEEE, & REACH compliance

PicoBNC Extension cable compatibility

Connected accessory	PicoBNC Extension cable compatibility	PicoBNC Extension cable limitations
3 m PicoBNC test leads (TA404, TA405, TA406, TA407)	✔	Maximum two leads connected in series
5 m PicoBNC test leads (TA475, TA476, TA477, TA478) Other passive attenuating probes (TA400, TA499, TA506)	❌	These leads must be connected directly to the PicoScope
All other PicoBNC probes	✔	Limitations do not apply

Looking for our basic BNC NVH kits?

Your existing kit is fully supported. BNC probes, accessories, and replacement parts remain available and PicoDiagnostics software continues to work with both BNC and PicoBNC hardware.

View more on our Basic BNC NVH kits.

Ordering Options for PicoBNC NVH Kits


PQ426 - PicoBNC NVH Starter Kit [No Case, No Mongoose and No Optical Sensor] [You can choose the Mongoose and or the optical sensor at check out, pricing for these options are listed at the bottom of the kit pricing]	Order the PQ426 here:

PQ427 - PicoBNC NVH Starter Kit with Case [No Mongoose and No Optical Sensors]	Order the PQ427 here:

PQ428 - PicoBNC NVH Standard Kit [Kit Includes 2 x Mongoose and 2 x Optical Sensors]	Order the PQ428 here:

PQ429 - PicoBNC NVH Advanced Kit [Kit Includes 4 x Mongoose and 4 x Optical Sensors]	Order the PQ429 here:

TA512 - J2534 lead: Mongoose-Plus ISO/CAN 3 [TA512 product page - here.......]	Order the TA512 here:

PQ316 - PicoBNC Optical Sensor Kit [PQ316 product page here......]	Order the PQ316 here:
